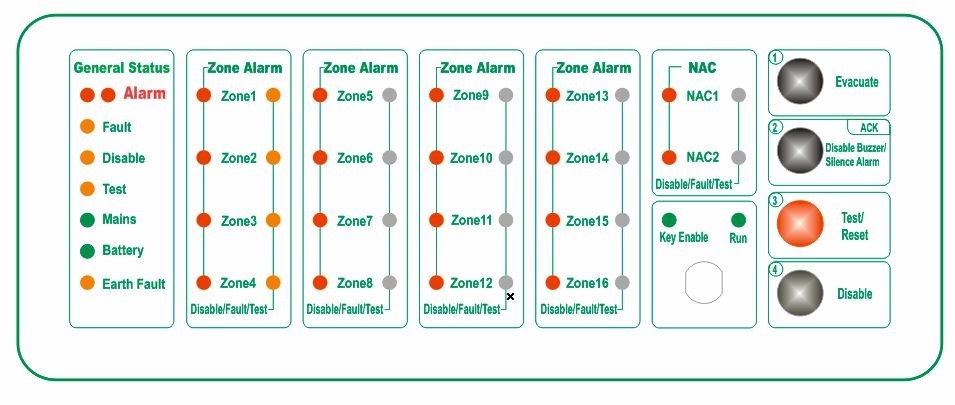

The panels have the following key features:
· 4, 8, or 16 conventional input zones.
· 2 notification appliance circuits (NAC) with built-in synchronization for ANSI 3.41and Gentex.
· The panel comes with a 3 amp power supply.
· Dedicated alarm and trouble relays.
· 1 RS485 can be able to connect repeaters.
· Housed in a 335mm W x 264mm H x 88mm D metal enclosure.
· Enclosure supports two 12V, 7Ah backup batteries.

AC POWER : 90 to 270VAC, 50 Hz, 3.0 amps.
Wire size : minimum 14 AWG (2.0 mm2) with 600-volt insulation.
BATTERY : Sealed lead-acid batteries only.
Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge.
Maximum battery charger capacity : 18AH battery.

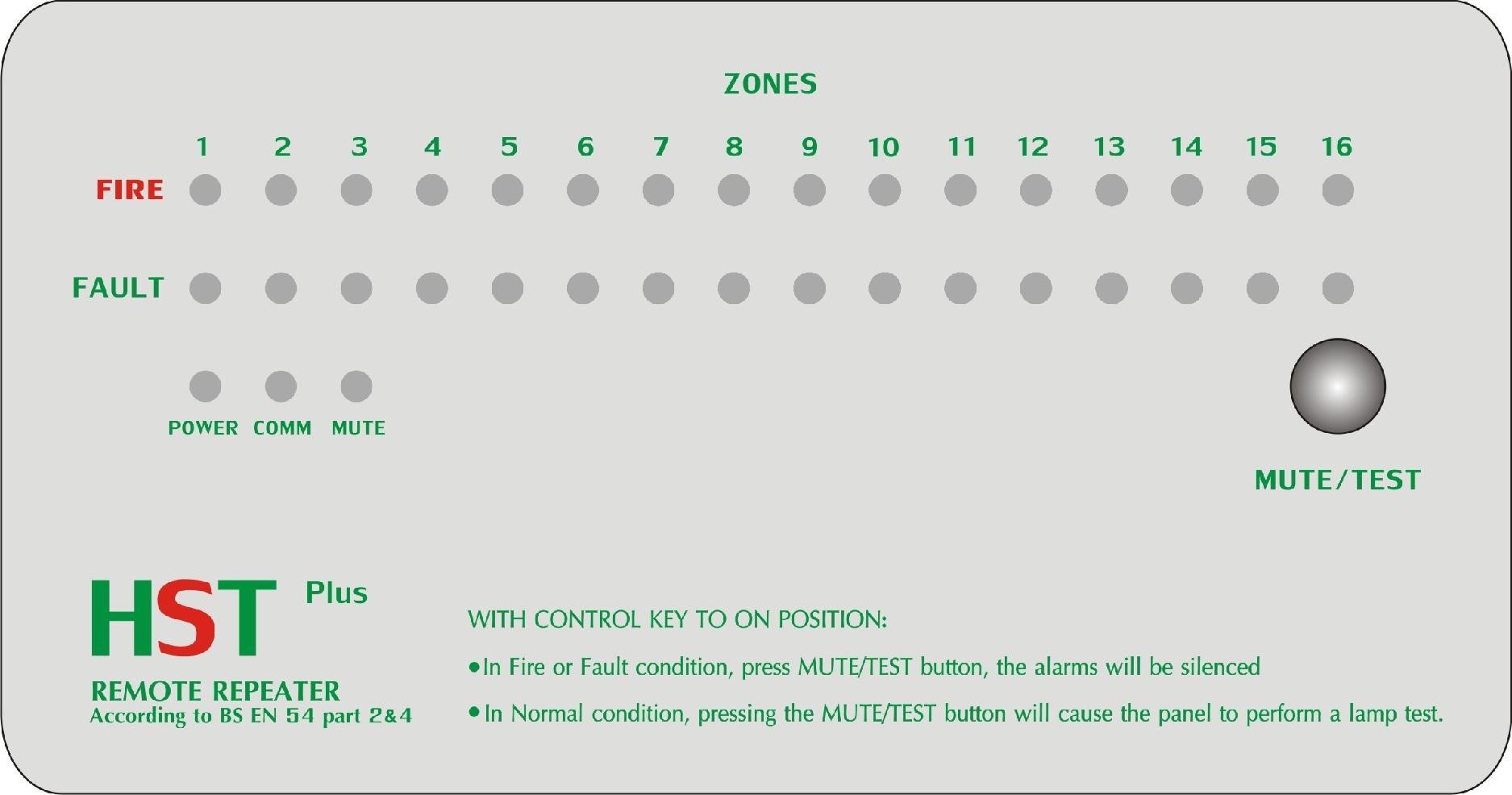

hen a fire alarm occurs, the corresponding zone red LED flashing and the
internal buzzer sounds. When “MUTE/TEST” button pushed, the alarm zone LED lights steady and the
buzzer silenced. When another new fire alarm occurs, the new zone red LED flash and the buzzer sound
again. In the fire alarm status, the fire alarm “FIRE OUT” relay active and output “NO, NC, C” relay
contacts

Operating Voltage Range : 9～28VDC Volts
Alarm Current : 45 mA @ 24 VDC
Operating Humidity Range :10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range : -10°C to 50°C (14°F to 122°F)
Dimensions : Length 140mm, Width 105mm, Depth 45mm
Weight : Net Weight 220g

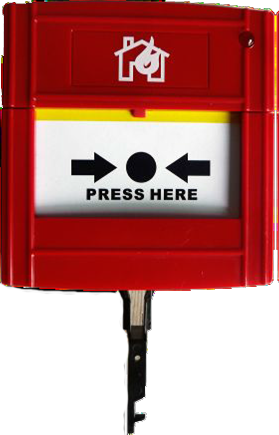

• Compatible with all the conventional fire alarm control panel
• Can be reset by key
• 470 Ohm resistance
• Easy surface mounting Base included

• Compatible with all the conventional fire alarm control panel
• Long light life up to 40000 flahsed
• High sound level up to 100dB

• Three module size of 6", 8", 10'
• Compatible with all the conventional fire alarm control panel
• High sound level up to 95dB
• Easy installation bracket included
• Steel material

• Compatible with all the conventional fire alarm control panel
• Unpolarized wire input
• Wide range of operating voltages
• High precision electronic thermistor
• Built in microprocessor intelligent software
• Two LEDs blink standby, provide 360° visibility
• Insect-resistant screening
• Twist-on mounting base with tamper lock
• Remote Indicator LED can be connected.

• Compatible with all the conventional fire alarm control panel
• Unpolarized wire input
• Wide range of operating voltages
• Unique optical sensing chamber
• Built in microprocessor intelligent software
• Two LEDs blink standby, provide 360° visibility
• Insect-resistant screening
• Twist-on mounting base with tamper lock
• Drift compensation and smoothing algorithms
• Remote Indicator LED can be connected.

• Compatible with all the conventional fire alarm control panel
• Unpolarized wire input
• Wide range of operating voltages
• Unique optical sensing chamber and High precision electronic thermistor
• Built in microprocessor intelligent software
• Two LEDs blink standby, provide 360° visibility
• Insect-resistant screening
• Twist-on mounting base with tamper lock
• Drift compensation and smoothing algorithms
• Remote Indicator LED can be connected.

• Compatible with all the security alarm system
• Alarm Relay Output (NO/NC can be adjustable)
• Unpolarized wire input
• Wide range of operating voltages (9V-28VDC)
• Unique optical sensing chamber
• Built in microprocessor intelligent software
• Two LEDs blink standby, provide 360° visibility
• Insect-resistant screening
• Twist-on mounting base with tamper lock
• Drift compensation and smoothing algorithms
