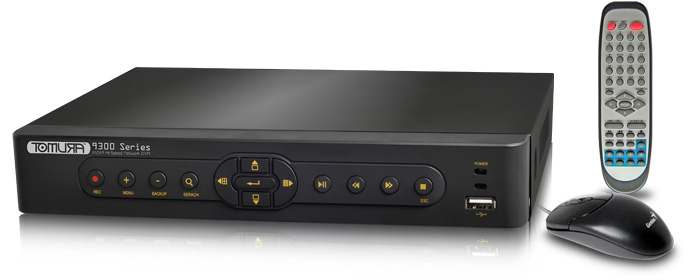

PS-9304Si/9308Si Hi-Speed Network DVR (Dual Stream) 4/8-CH H.264 Baseline Profile |
 |
- FEATURES
- SPECIFICATION
- DOWNLOAD
- 4 กล้อง Real-Time (100/100 FPS @D1)
- 8 กล้อง (125/200 FPS @4D1+4CIF)
- สัญญาณภาพความละเอียดสูงผ่านพอร์ท HDMI, SXVGA true high resolution display(ความละเอียดสูงสุด 1,920x1,080 Pixel)
- ระบบการบันทึกภาพ H.264 compression
- ความละเอียดสูงสุด D1 : 704x576 Pixel
- ระบบการบันทึกเสียง Input 2-CH/Output 1-CH (Two-Way Audio)
- Dual Stream Video technology to encode recording stream and network stream separately. User can adjust network stream to fit bandwidth without changing recording quality
- Pentaplex : บันทึก,ภาพสด,ดูย้อนหลัง,สำรองข้อมูล,ดูผ่านเน็ตเวิร์ค
- เมนู GUI ภาษาไทย, อังกฤษ และอีกกว่า16ภาษา
- ฟรีแอพพลิเคชั่น SuperLive สำหรับมือถือ Symbian, PDA, iPhone Android และ Black Berry • Snapshot and Video Record available for iOS/Android. Multi-site remote management for iPad
- ดูภาพออนไลน์พร้อมกันได้ถึง 10 User
- บันทึกภาพนิ่งและวีดีโอบนมือถือ iOS/Android
- Playback Real-time D1 พร้อมกันทั้ง 4/8 กล้อง
- รูปแบบแสดงผลที่หน้าจอหลัก Full screen on event,
Sequence and Split screen 1,4,6,1A5, 1A7,8,9
- GUI เมนูกราฟฟิคภาษาไทย-อังกฤษ และอื่นๆ รวม 16 ภาษา
- 3.5" HDD SATA 1 ลูก สูงสุดถึง 2TB
- ฟังค์ชั่นตรวจสอบ HDD S.M.A.R.T
- สำรองข้อมูลผ่าน IE, CMS, USB 2.0 และ DVD-RW (External)
- Call Monitor Output
- ฟรี CMS ภาษาไทย 256 กล้อง/Page ไม่จำกัด DVR
|
|
Model |
PS-9304si |
PS-9308si |
Compression |
H.264 |
OS |
Embeded Linux |
Video Input |
4-CH |
8-CH |
Video Output |
Video Output = VGA Mainout*1, BNC Call out *1 |
Video Loopout |
NO |
Display Resolution |
HDMI&VGA: 1,920 x 1,080, CVBS:D1 704x576, Super clear image on VGA High resolution. |
Recording Resolution |
D1,HD1, CIF |
Frame Rate (PAL) |
100fps @ CIF 352x288 |
200fps @ CIF 352x288 |
100fps @ D1 720x576 |
125fps @ D1 720x576 |
Frame Rate (NTSC) |
120fps @ CIF 360x240 |
240fps @ CIF 360x240 |
120fps @ D1 720x480 |
130fps @ D1 720x480 |
Playback |
4-CH |
8-CH |
Digital Zoom |
4X in live/Playback/I.E. /Safari /CMS |
| Display Monitor |
Full screen on event, Sequence and Split screen 1, 4, 6, 1A5, 1A7, 8, 9 |
HDD Interface |
1SATA up to 2TB |
S.M.A.R.T HDD self-monitoring Disk warning when fail. |
Audio Input |
2-CH |
Audio Output |
1-CH |
Password Protection |
Authority configurable user |
Log list |
Motion/SENSOR/SYSTEM/OPERATION |
Bidirectional talk |
YES |
Network Interface |
10/100M Ethernet self-adjustable |
| Protocol |
TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP. |
DDNS |
DDNS |
Communication Interface |
USB2.0*2, RS485*2 |
PTZ Protocal |
Pelco D, Pelco P, RANGE, VISCA, DSCP, VIDO, STAR, NEON, MINKING, LILIN |
IR Controller |
Optional |
Recording Mode |
Manual, Timer, Motion, Sensor |
Multi Stream |
Dual Stream: Master Stream for Record, Sub Stream for Network. |
Search |
DVR, IE, CMS, iPhone, iPad: time / Event /File management / Snap Shot |
Cellphone software |
“SuperLive” available for iOS , Andriod , BB , Symbian , WM |
PC Viewer |
AVI format |
CMS |
Standard version 64CH Dual Monitor, Local schedule record |
Languages |
Thai, English, Other 16 languages |
Certification |
CE , FCC |
|
* Product Design and Specifications are subject to change without prior notice.
|
 |
|
