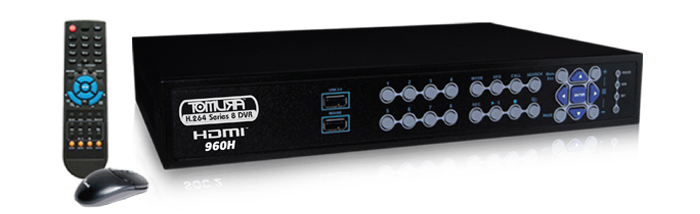

PS-804HCI/808HCI Compact Series 8 DVR (N-Streaming) 4-CH H.264 Main Profile |
|
- FEATURES
- SPECIFICATION
- DOWNLOAD
|
- 4/8 กล้อง New CPU Real-Time 2X Recording rate
- ระบบการบันทึกภาพ H.264 Main Profile
- FULL-D1 ความละเอียด 720x576 Pixel
- ระบบการบันทึกเสียง STEREO Input 2/8-CH/Output 1-CH
- SIXFOLD Operation: (บันทึก,ภาพสด,ดูย้อนหลัง,สำรองข้อมูล,ควบคุม,ดูผ่านเน็ตเวิร์ค)
- ดูผ่านมือถือได้ทุกรุ่นโดยไม่ต้องใช้แอพพลิเคชั่นใดๆ เพิ่มเติม
- ดูผ่าน iPhone/iPad/Android ด้วยแอพพลิเคชั่น TabCMS 16 กล้องพร้อมกันบนหน้าจอเดียว พร้อม Push Alarm
- คอมพิวเตอร์และมือถือทุกรุ่นทุกระบบที่เชื่อมต่ออินเตอร์เน็ต สามารถเข้าดูพร้อมกันได้ถึง 6 User
- รองรับ IE, Firefox Brower, Google Chrome และระบบปฏิบัติการ Windows 7, Vista, XP, 2000
- N-Streaming ดูผ่าน Safari browser ได้รวดเร็วสูงสุดถึง 10fps
- ต่อไมโครโฟน พูดคุยผ่านอินเตอร์เน็ตได้ทั่วโลก (Two-Way Audio)
- รองรับ Fly2DNS, DYN DNS, NO-IP.com, Free DNS, 3322.org ตัวเครื่องสามารถอัพเดทได้เอง
- หาของหายได้รวดเร็วที่สุดด้วยฟังค์ชั่น Object Search, นับคน นับรถได้
- Display & Playback Digital Zoom 2x, 4x
- 3D de-interlace & de-noise ภาพบนจอนิ่ง ไม่เต้น ลดสัญญาณรบกวน
- Built-in HDMI/VGA Output Resolution 1920x1080 pixel
- GUI เมนูกราฟฟิคภาษาไทย
- HDD สูงสุดถึง 3TB SATA 1 ลูก
- สำรองข้อมูลผ่าน USB 2.0 และ DVD-RW (External)
- Digital Watermark
- ขนาดเครื่อง 320(W) x 210(H) x 50(H) มิลลิเมตร
- HEM Software (CMS) ภาษาไทย 10 DVR 40 กล้อง (4-CH), 80 กล้อง (8-CH), Unlimited (option) ออกแบบหน้าจอและปุ่มเครื่องมือได้เองอย่างยืดหยุ่น
|
System |
O.S. |
Embedded Linux 3.0. |
Multiplex |
Sixfold operation - simultaneous record, live, |
playback, backup, control, & remote access. |
Processor |
Multiple. |
Certification |
FCC, CE, LVDS, etc. |
Video |
Format Input |
NTSC/EIA or PAL/CCIR. |
|
4/8-CH BNC, 1Vp-p/75ohm. |
Main monitor |
BNC x 1, S-video x 1, 1Vp-p/75ohm, |
Built-in HDMI/VGA D-SUB 15-pin connector. |
3D de-interlace
& de-noise |
Yes. |
Loss detection |
Yes. |
Motion detection |
Yes, with configurable detection area (22x26 Cells) & sensitivity. |
Audio |
Input |
2/8 RCA-jack connectors, line-in level (100mV-2Vrms). |
Output |
1 RCA-jack connectors, line-out level (up to 2Vrms). |
Record |
Compression |
Video: H.264 Main Profile with Watermark. |
Audio: ADPCM. |
Frame rate (IPS) |
PAL - 50/720x576, 100/720x288, 200/360x288. |
& Resolution |
1~50IPS adjustable each camera or vary by event triggered. |
Quality |
1-9 level. |
Mode |
Manual (Emergency)/Schedule/Alarm/Motion. |
Pre-record time |
0 - 60 seconds. |
Post-record time |
0 - 60 minutes. |
Display |
Resolution |
NTSC – 720x480, PAL – 720x576. |
Split windows |
1/4/SEQ. |
Frame rate |
Up to 60 (NTSC) / 50 (PAL) IPS per display window. |
Freeze |
Yes. |
Sequential switch |
User adjustable. |
Digital Zoom |
2x, 4x |
Playback |
Frame rate (IPS) |
NTSC - 240/720x480, 240/720x240, 240/360x240. |
& Resolution |
PAL - 200/720x576, 200/720x288, 200/360x288. |
Search |
Object search, Date/time, Camera, Alarm, Motion, |
& Video Loss, Search Achieve files. |
Operation |
Play, 64X Fast Forward & Backward, Pause, Stop, etc, Remote I.E. and HEM can also Print. |
Storage |
HDDs |
1 set of 3.5¨ SATA type HDD, |
Max. 2TB of HDD storage size |
Partitions |
Configurable alarm partition size. |
Configurable auto-overwrite or not. |
Backup |
1 USB 2.0 port for USB 2.0 disk drives, DVD+RW, DVD+R, DVD-R, card readers, HDD, etc. External DVD models: DVD+RW, DVD+R, DVD-R Self playback for backup files |
Alarm |
Input |
4 contact or TTL/CMOS signal, polarity selectable. |
Output |
1 Normally Open, 1 Normally Closed relay output Co response to Alarm/Event input or manual control by remote PC and mobile phone. |
Buzzer |
Yes. |
Triggered by |
Sensor input, Video loss, & Motion. |
Event log |
Yes with system log. |
Network |
Ethernet |
1 RJ-45 10/100BaseT Ethernet connector. |
Web |
Remote setup, monitoring, backup, alarm notification, & remote software upgrade 1 I.E./Firefox for unlimited DVRs Configurable HTTP/Control/Data port. |
E-mail |
Alarm notification to stationary or mobile devices. |
FTP |
Alarm video/audio file storage. |
Video |
1/4 split-window & SEQ mode for IE and HEM |
Dynamic electronics maps for HEM. |
Audio |
Bidirectional with broadcast. |
Protocol |
TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP. |
Remote users |
Up to 6 users simultaneously. |
Bandwidth |
TCP/IP type dynamic sliding window control. |
Remote stations |
PC, mobile phone, iPhone or PDA. no Apps required |
Control / GPS / POS |
I/R |
1 I/R remote controller. |
RS-485 |
2-pin for keyboard, PTZ control, GPS or POS. |
Setup |
Local |
GUI setup via mouse, keypad, I/R remote controller, and/or RS-485 keyboard controller. |
Remote |
Setup & upload via Windows application software. |
Multi-lingual |
Yes, 14 languages with Thai language. |
Reliability |
System recovery |
Auto power on after power loss recovery. |
Watch Dog Timer |
Yes. |
Timer |
Built-in real time clock. |
Security |
Multi-level password (3 levels, up to 18 accounts) |
protection with authentication key for remote access. |
Weights & Measures |
Dimension |
320(W) x 210(D) x 50(H)mm. |
Weight |
2.0 KG (without HDD). |
Power |
Source |
+12VDC. |
Consumption |
30W Max. |
Operating |
Temperature |
0°C ~ +45°C. |
|
* Product Design and Specifications are subject to change without prior notice.
|
|
|
